Sliding gate motorBENINCA BULL 1224 TURBO
AED 3,000
Installation available, ask on WhatsApp
Delivery in the UAE, ask on WhatsApp for timing
24 VacPower supply
3 APower
390 NMax thrust
IP44Protection
-20/+50°CWorking temp
1200 kgMax gate weight
Overview
Full description

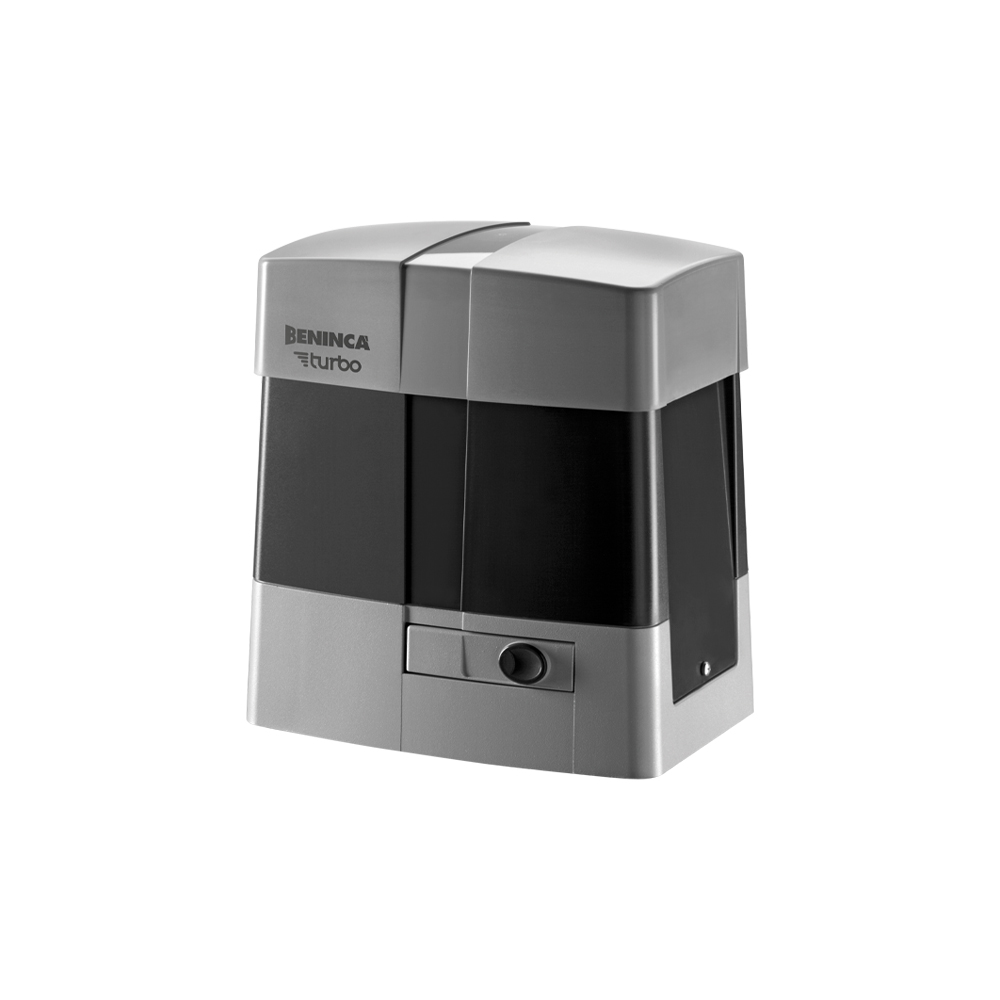

BENINCA 1200 KG Sliding Gate Motor in UAE
BENINCA BULL 1224 TURBO
BENINCA BULL 1224 TURBO Sliding Gate Motor in UAE
- BENINCA BULL1224 TURBO | 1200 KG
- Commercial use
- 24 Vdc
- Up to 1200 kg
- Turbo Gear motor with opening speed higher than standard values
- Maximum manoeuvre speed is 24 m/min
BENINCA BULL1224 TURBO Kit Includes:
- 1 x BENINCA Bull1224 Turbo Sliding Gate Motor,
- 2 x BENINCA Remote Control 433.92 MHz
- 1 x Pair photocells for outdoor use.
- 1 x Control Unit (Inbuilt in the motor)
- 4 x Nylon Rack 1m.
- 1 x Blinker light.
- 1 x Push Button.
BENINCA BULL Technical Data:
- Power supply : 115 Vac / 230 Vac (50-60Hz)
- Motor supply : 24 Vac
- Max absorbed current : 3 A
- Maximum thrust : 390 N
- Opening speed : 12,5 ÷ 25,5 m/min
- Duty cycle : 80%
- Protection level : IP44
- Built-in control unit : yes
- Integrated receiver : yes
- Encoder : yes
- Virtual encoder : no
- Magnetic limit switches : no
- Pinion for rack : M4 Z18
- Operating temperature : -20°C /+50°C
- Lubrication : Oil
- Maximum gate weight : 1200 kg
- Weight : 17.3 kg
- Kit weight : 20 kg.
Specifications
Power
- Power supply
- 115 Vac / 230 Vac (50-60Hz)
- Motor supply
- 24 Vac
- Max absorbed current
- 3 A
- Built-in control unit
- yes
- Integrated receiver
- yes
- Encoder
- yes
- Virtual encoder
- no
Performance
- Maximum thrust
- 390 N
- Opening speed
- 12,5 ÷ 25,5 m/min
- Duty cycle
- 80%
- Magnetic limit switches
- no
- Pinion for rack
- M4 Z18
- Lubrication
- Oil
- Maximum gate weight
- 1200 kg
Environment
- Protection level
- IP44
- Operating temperature
- -20°C /+50°C
- Weight
- 17.3 kg
- Kit weight
- 20 kg.
In the box
1×BENINCA Bull1224 Turbo Sliding Gate Motor,
2×BENINCA Remote Control 433.92 MHz
1×Pair photocells for outdoor use
1×Control Unit (Inbuilt in the motor)
4×Nylon Rack 1m
1×Blinker light
1×Push Button
FAQ
What is the maximum gate weight?
1200 kg, according to the specification on this page.
Is it rated for outdoor use?
Protection rating: IP44. Working temperature: -20°C /+50°C.
What power supply does it need?
115 Vac / 230 Vac (50-60Hz).
Do you install it?
Yes, installation is available. Send a photo of your gate and your location on WhatsApp for a price.
