BENINCA 600 KG Sliding Gate Opener in UAE

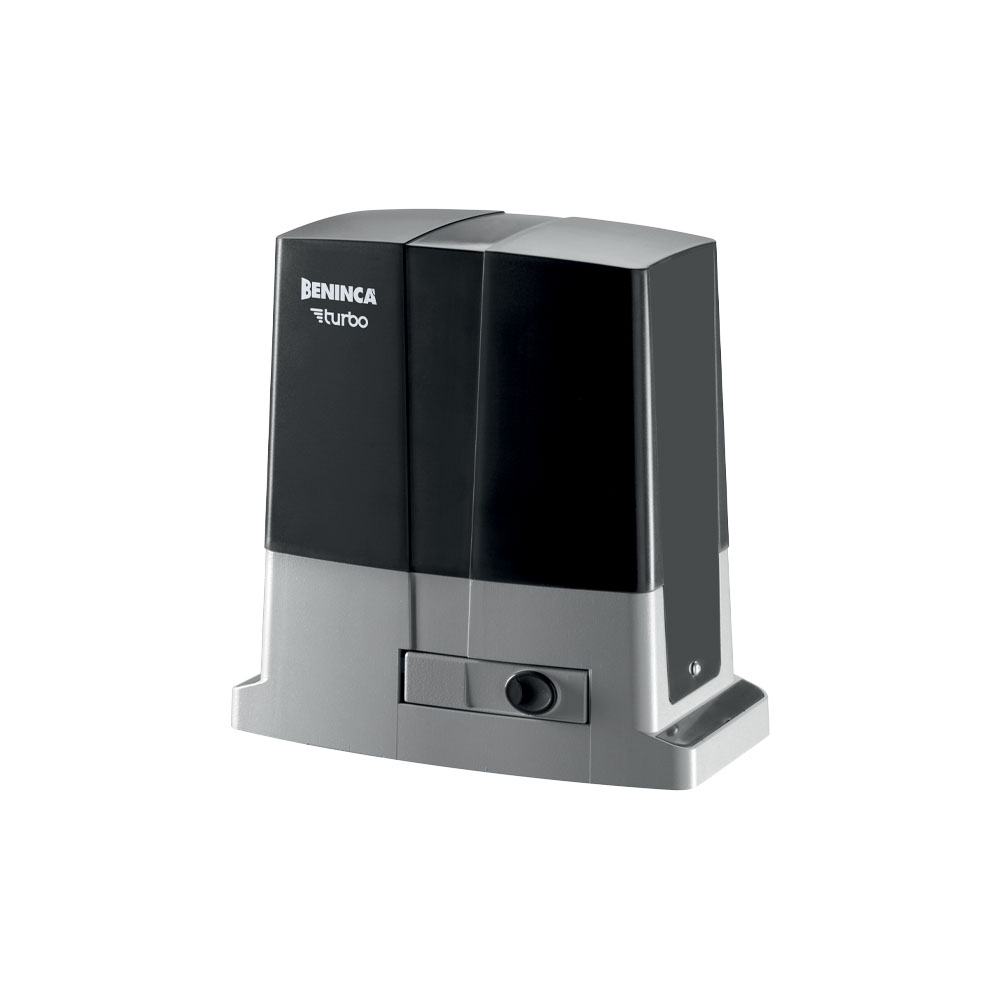

BENINCA BULL 624 TURBO

BENINCA BULL 624 TURBO Sliding Gate Motor in UAE

BENINCA 600 KG Sliding Gate Motor
Commercial use
24 Vdc
Up to 600 kg
Turbo Gear motor with opening speed higher than standard values
Maximum manoeuvre speed is 25,5 m/min
Encoder signal recreated by the control unit beginning with the measurements of electric motor operation parameters.
It is possible to manage slowing optimally and trace gate travel
while providing the torque data in relation to its position to guarantee maximum safety
Intelligent power control system that allows obtaining dynamic data through a precise calculation of the thrust
The system is able to locate any critical points and adjust
the torque accordingly in relation to actual requirements and according to measured performance
433.92 MHz Receiver equipped exclusively with Advanced Rolling Code (ARC)
This is a protocol for connection with KNX home automation systems by connection of the X.BE card (optional)
512 transmitters storable inside the receiver,

BENINCA BULL624 TURBO Kit Includes:

• 1 x BENINCA Bull624 Turbo Sliding Gate Motor,
• 2 x BENINCA Remote Control 433.92 MHz
• 1 x Pair photocells for outdoor use.
• 1 x Control Unit (Inbuilt in the motor)
• 4 x Nylon Rack 1m.
• 1 x Blinker light.
• 1 x Push Button.

BENINCA BULL Technical Data:

• Power supply : 115 Vac / 230 Vac (50-60Hz)
• Motor supply : 24 Vac
• Max absorbed current : 3 A
• Maximum thrust : 330 N
• Opening speed : 12,5 ÷ 25,5 m/min
• Duty cycle : 60%
• Protection level : IP44
• Built-in control unit : yes
• Integrated receiver : yes
• Encoder : yes
• Virtual encoder : no
• Magnetic limit switches : no
• Pinion for rack : M4 Z18
• Operating temperature : -20°C /+50°C
• Lubrication : GREASE
• Maximum gate weight : 600 kg
• Weight : 10kg
• Kit weight 10.6 kg.
